Electrical & Plumbing

Faswall makes it relatively easy to install Electrical Wiring. Use of simple power tools and standard conduit and wiring.

Plan your Electrical and Plumbing

Proper planning for electrical, plumbing, and any penetrations is required since they will be set up prior to the concrete infill.

Gray colored PVC piping may be used as a chase through the walls. For small vent ducting use a hole saw through the wallform walls. Install stub prior to concrete infill.

faswall_electrical1

Conduit run in the wallforms

Typically flexible (blue) or gray conduit is used to link electrical boxes together. Use a reciprocating saw to cut out for electrical boxes. Secure the box in the opening with screws and/or non expanding urethane foam construction adhesive..

faswall_electrical10

Surface installation of wiring in grooved wallforms

faswall_electrical2

Conduit or wiring (code dependant) can also be placed within grooves routed into the wallform surface. This can be accomplished after the wallforms have been completely erected and filled with concrete. To rout grooves for surface installation of wiring, either within conduit or not, use an electric router fitted with a 5/8” x 2” carbide router bit or a chain saw fitted with a depth guide. Rout or cut the grooves as needed, making sure that the depth of the cut is adequate to lay the wiring out of reach of any fasteners (nails, screws, etc.) that might be used when finishing the wall or attaching fixtures. Wires are normally placed in conduit. After wiring is placed in the groove, use a quick-setting mortar to fill in the groove. Code sets the depth requirement for the wire from the surface of the wallforms.

How to Install Radiant Heat with Faswall

Faswall® Building Project

1. Installation of radiant floor heating system with FaswallShelterWorks Ltd.

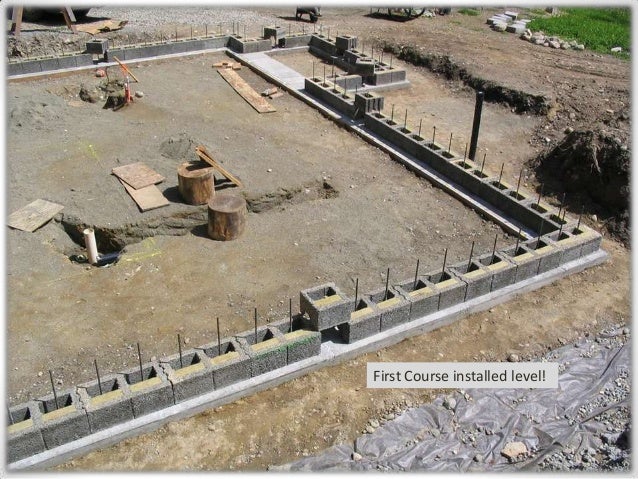

2. First Course installed level!
3. Vapor barrier and additional perimeter insulation.

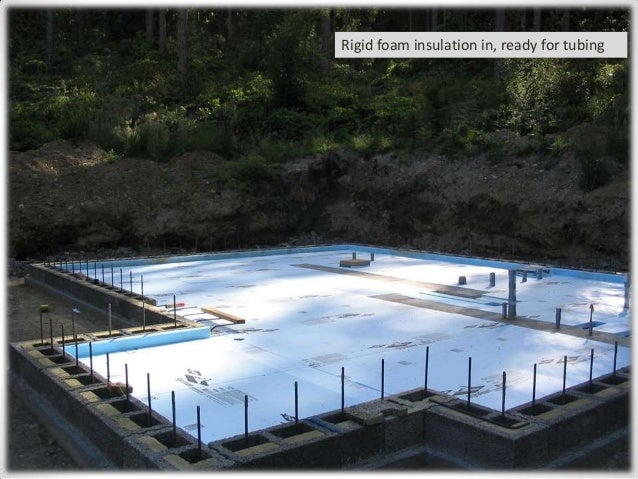

4. Rigid foam insulation in, ready for tubing.

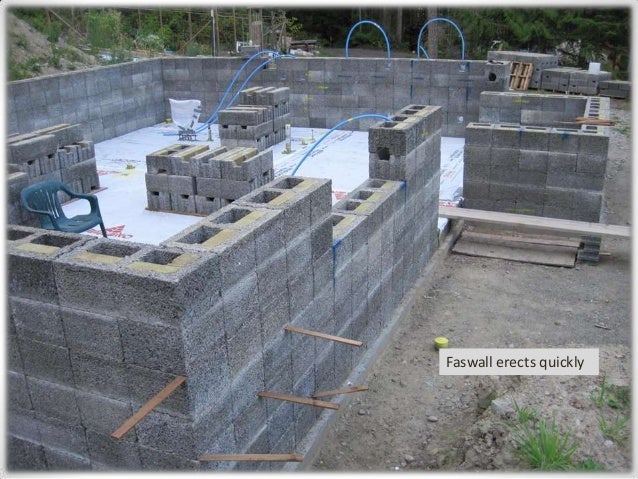

5. Faswall erects quickly.

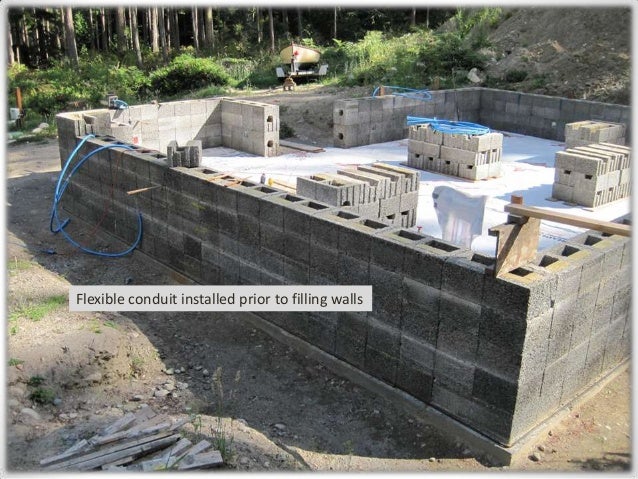

6. Flexible conduit installed prior to filling walls.

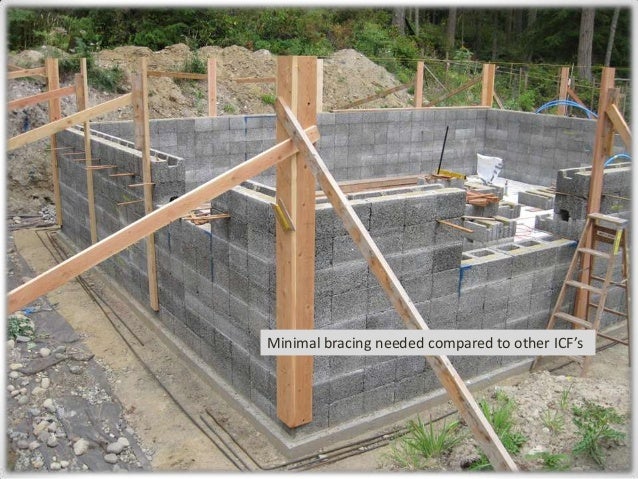

7. Minimal bracing needed compared to other ICF’s.

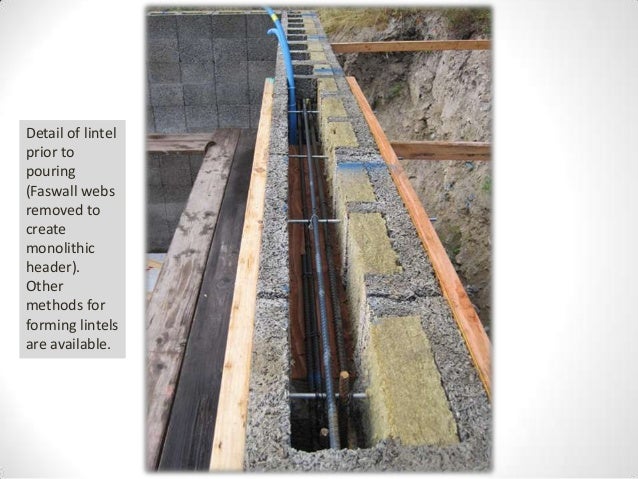

8. Detail of lintel prior to pouring (Faswall webs removed to create monolithic header). Other methods for forming lintels are available.

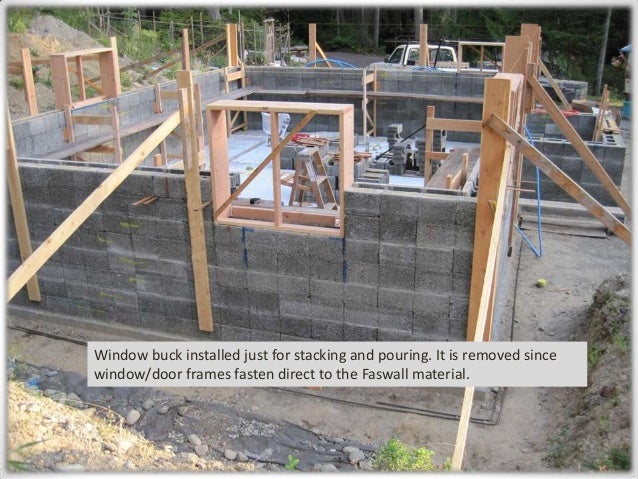

9. Window buck installed just for stacking and pouring. It is removed since window/door frames fasten direct to the Faswall material.

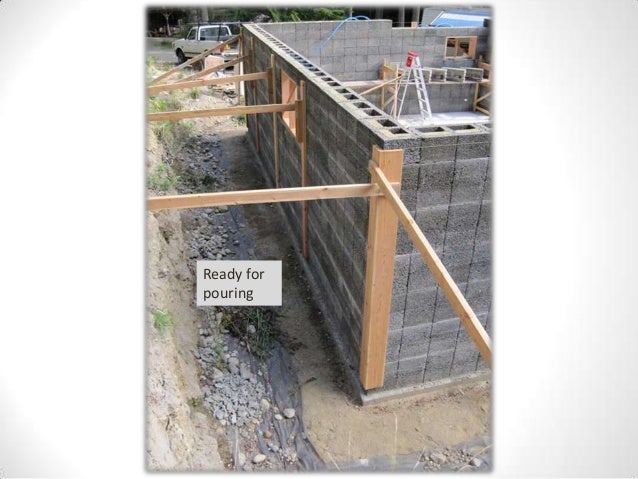

10. Ready for pouring.
